MSSNR 16-4

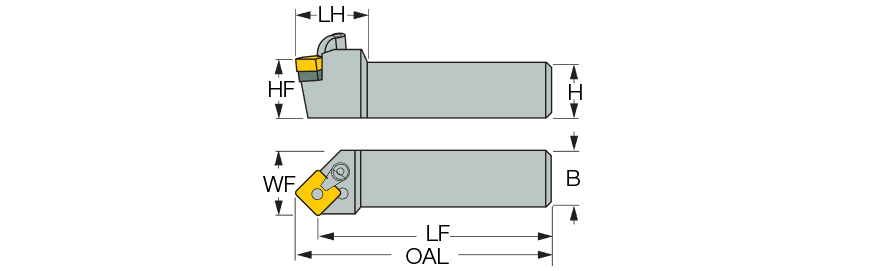

| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | -8 Degrees |
| Overall Length (OAL) | 6″ | Body Material | Steel |
| Functional Length (LF) | 5.6″ | Cutting Position | External |
| Head Length (LH) | 1.23″ | Clamping System | CL9 |
| Functional Width (WF) | 0.91″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | MSSNR 16-4 |
| Application | | Ext. 90°Square 45°Face&Turn Ap | | Insert Style | 6″ |
Product Features

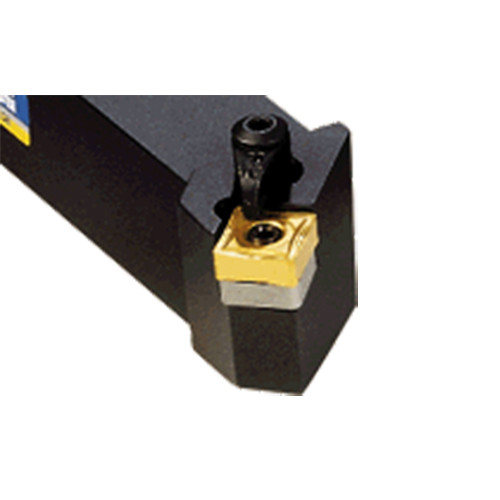

| Family Description | Comlock holders for negative square inserts. 45° face and longitudinal lead angles. | Country of Origin | Israel |
Shipping Info
Package Weight
1.951
