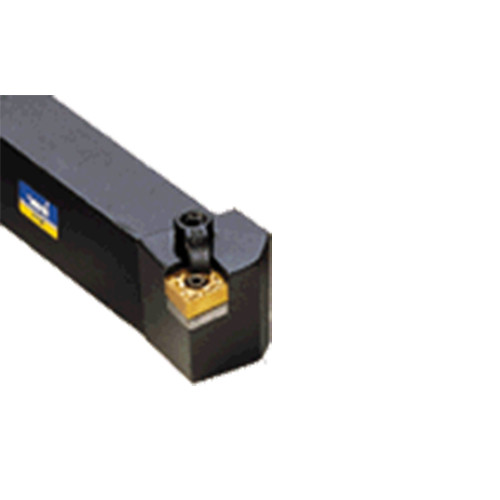

MCLNR 16-4

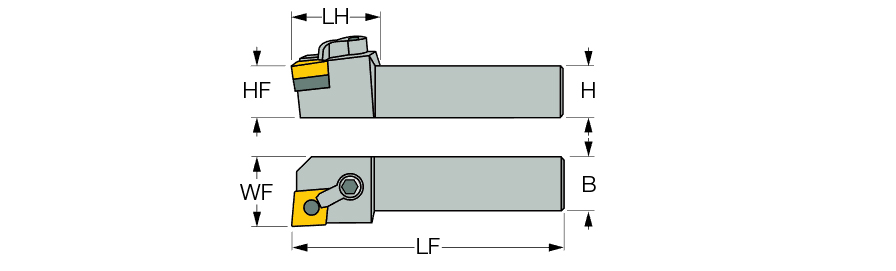

| Shank Height (H) | 1″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Shank Width (B) | 1″ | Body Material | Steel |
| Functional Length (LF) | 6″ | Cutting Position | External |
| Head Length (LH) | 1.19″ | Clamping System | CL20 |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | MCLNR 16-4 |
| Application | | Ext. 80° Diamond 95° Approach | | Insert Style | 6″ |
| Rake Angle Axial (GAMP) | -6 Degrees |
Product Features
| Family Description | Comlock tools carrying 80° negative rhombic inserts. | Country of Origin | USA |
Shipping Info
Package Weight
1.812
