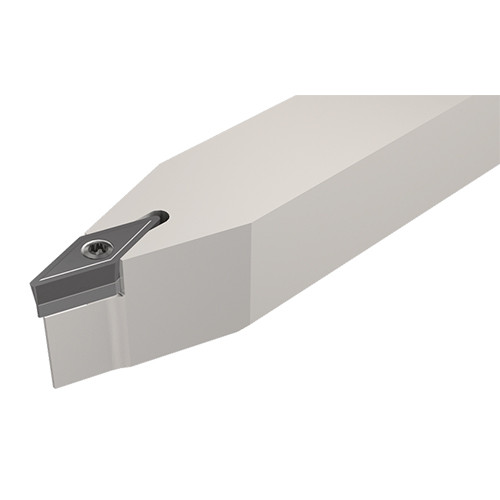

SVVCN 12-3

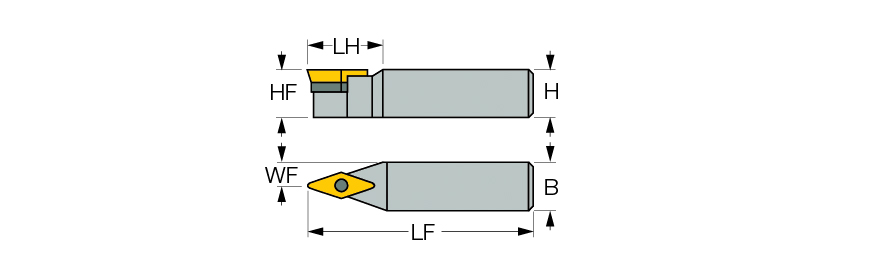

| Shank Height (H) | 3/4″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 3/4″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 4-1/2″ | Body Material | Steel |
| Head Length (LH) | 1.13″ | Cutting Position | External |
| Functional Width (WF) | 0.38″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Style | SVVCN 12-3 |
| Application | | Ext. 35° Diamond 72.5° Approac | | Insert Style | 4.5″ |
Product Features
| Family Description | 72.5° lead angle screw lock tools carrying 35° diamond inserts with 7° clearance angle. | Country of Origin | Israel |
Shipping Info
Package Weight
0.705
