MULNL 16-4MW

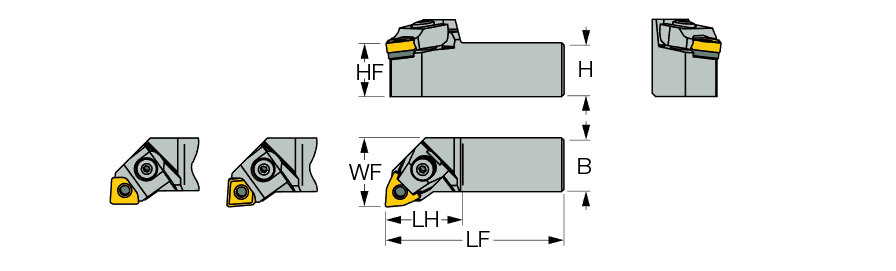

| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.37″ | Cutting Position | External |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Application | | Ext. 80° Diamond 95° Approach | Ext. 80° Trigon 95° Approach | Ext. 90° Square 75° Approach | | Insert Style | 6″ |
Product Features

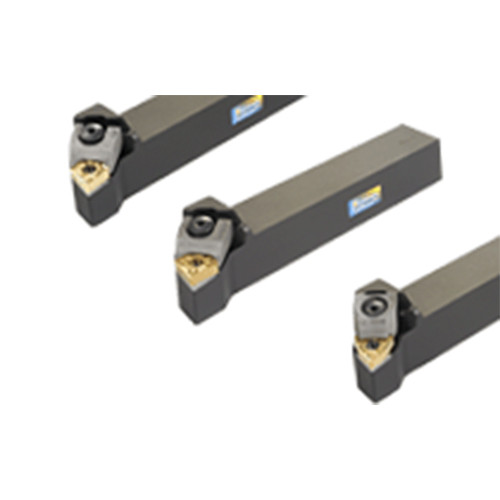

| Family Description | MULTI-WEDGE lock, external toolholders for negative 80° rhombic, trigon and square inserts. | Country of Origin | Israel |
| Remarks | Only LC WN08 is supplied with the toolholder. The other two wedges should be ordered separately. RH wedge for RH tool. LH wedge for LH tool. For other wedges see more info. |
Shipping Info
Package Weight
1.801
