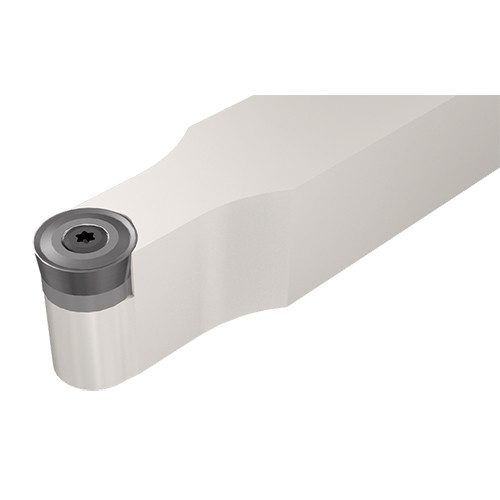

SRNCN 10-08

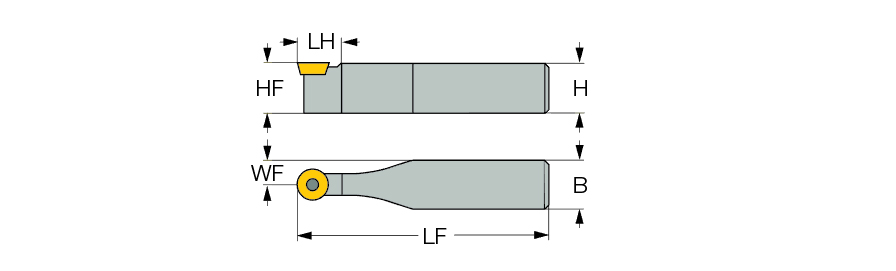

| Shank Height (H) | 5/8″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 5/8″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 4-1/2″ | Body Material | Steel |
| Head Length (LH) | 0.62″ | Cutting Position | External |
| Functional Width (WF) | 0.31″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 0.315″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Style | SRNCN 10-08 |
| Master Insert Identification (MIID) | RC.. 08 | Insert Style | 4.5″ |
Product Features
| Family Description | Screw lock neutral holders for 7° clearance angle round inserts | Country of Origin | Israel |
Shipping Info
Package Weight
0.474
