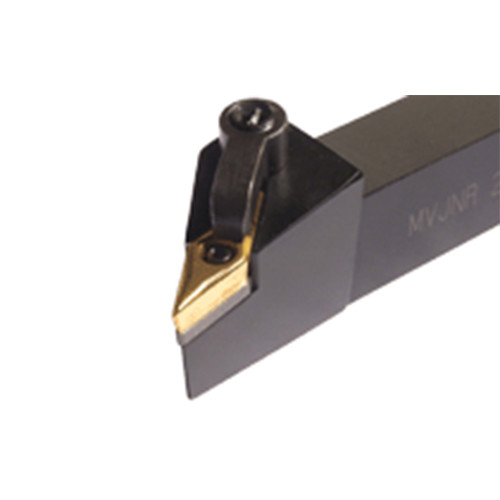

MVJNR 16-3

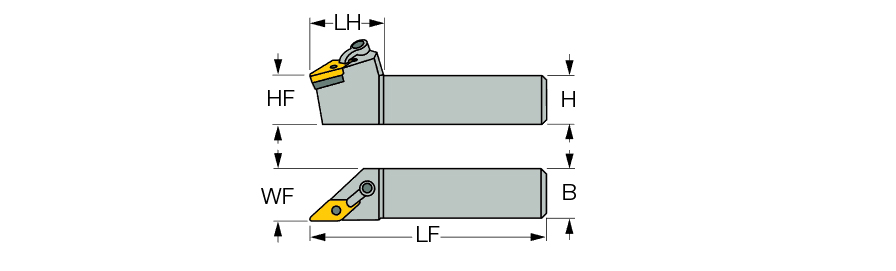

| Shank Height (H) | 1″ | Rake Angle Radial (GAMF) | -10.5 Degrees |
| Shank Width (B) | 1″ | Body Material | Steel |
| Functional Length (LF) | 6″ | Cutting Position | External |
| Head Length (LH) | 1.69″ | Clamping System | CL30 |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | MVJNR 16-3 |
| Application | | Ext. 35° Diamond 93° Approach | | Insert Style | 6″ |
| Rake Angle Axial (GAMP) | -5.5 Degrees |
Product Features
| Family Description | Comlock tools carrying 35° negative rhombic inserts. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Length
6.00000
Package Width
1.80000
Package Height
1.50000
Package Weight
1.69
