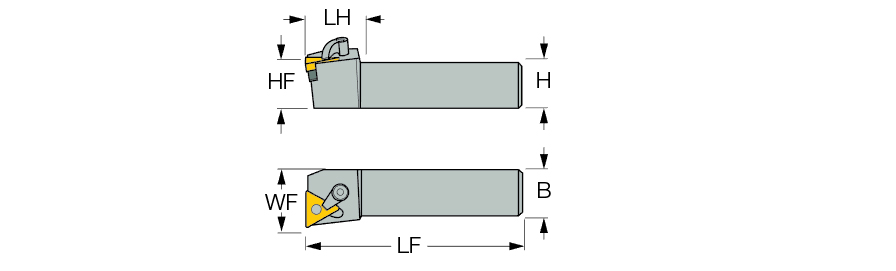

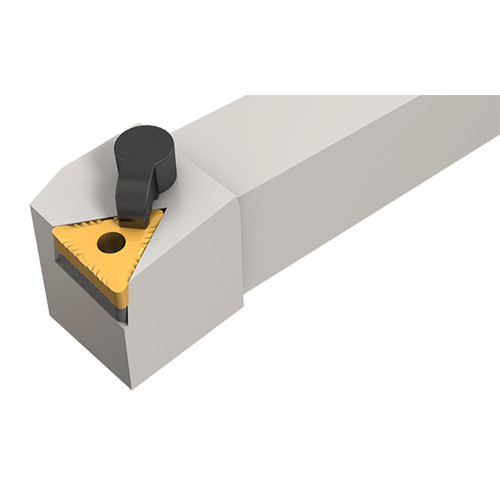

MTFNR 12-3
| Shank Height (H) | 3/4″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 3/4″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 4-1/2″ | Body Material | Steel |
| Head Length (LH) | 0.88″ | Cutting Position | External |
| Functional Width (WF) | 1″ | Clamping System | CL6 |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | TN..3.. | Style | MTFNR 12-3 |
| Application | | Ext. 60° Triangle Facing | | Insert Style | 4.5″ |
Product Features
| Family Description | Comlock holders for facing with negative triangular inserts. | Country of Origin | USA |
Shipping Info
Package Weight
0.915
