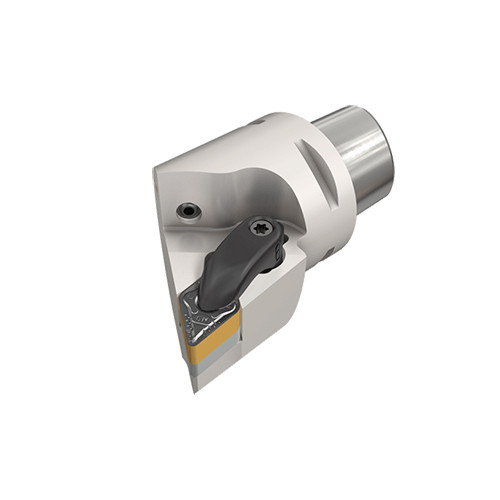

C4 DDJNR-27060-15
Turning Toolholder; 3.307″ OAL × 1.575″ Shank Dia. ; Right Hand ; Steel

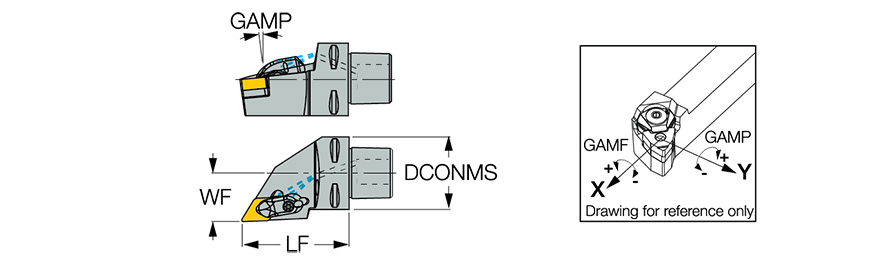

| Overall Length (OAL) | 3.307″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 2.362″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 1.063″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | DN..4.. | Style | SCLCL08-3A |
| Coolant Supply Property (CSP) | Coolant Thru | Insert Style | 2.362″ |
| Application | | Ext. 55° Diamond 93° Approach | |
Product Features
| Family Description | R-clamp tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying negative 55° rhombic inserts. | Country of Origin | Israel |
| Remarks | Use RDT 443 seat for DN.. 43. inserts |
Shipping Info
Package Weight
1.108
