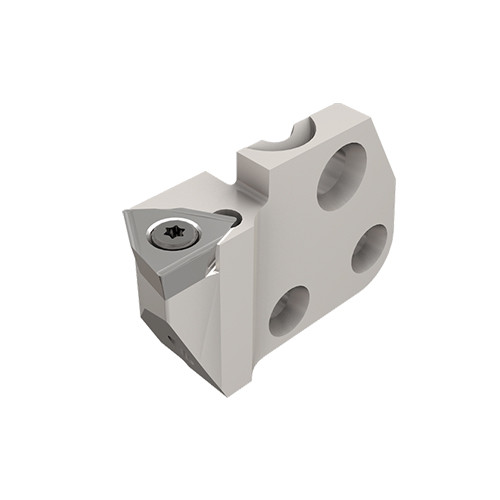

SWAPR-06-PAD
| Overall Length (OAL) | 1.654″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 1.654″ | Body Material | Steel |
| Functional Width (WF) | 0.295″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Adapter Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | WPEX/B 0604 | Style | SCLCL08-3A |
| Application | | Ext. Positive Trigon 90°Approa | | Insert Style | 1.654″ |
| Rake Angle Axial (GAMP) | 0 Degrees |
Product Features
| Family Description | 90° entering angle screw lock adapters carrying trigon inserts for Swiss automatic machines | Country of Origin | Israel |

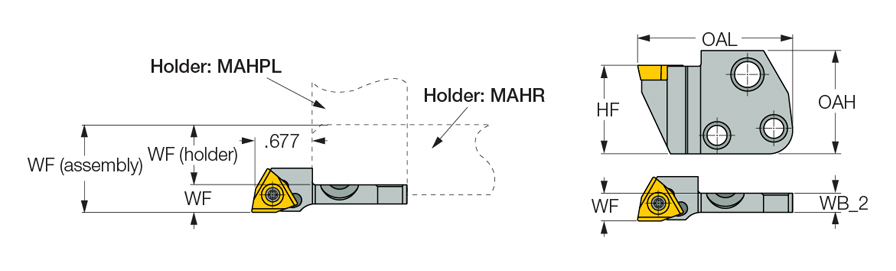

| Remarks | WF(assembly) = WF(holder) + WF |
Shipping Info
Package Weight
0.172
