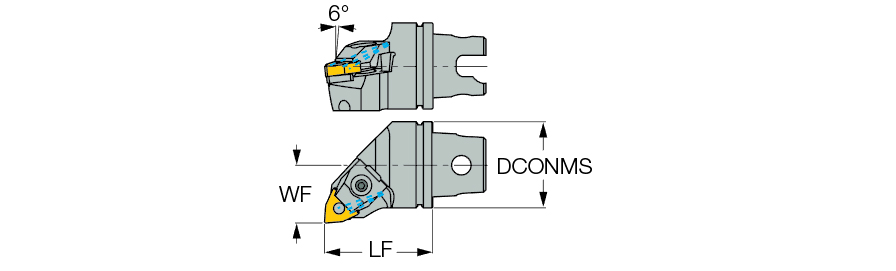

IM40 MULNL-12MW
| Shank Height (H) | 1/2″ | Application | | Ext. 80° Diamond 95° Approach | Ext. 80° Trigon 95° Approach | Ext. 90° Square 75° Approach | |
| Shank Width (B) | 1/2″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Functional Length (LF) | 1.968″ | Body Material | Steel |
| Functional Width (WF) | 1.063″ | Cutting Position | External |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | End Chamfer Angle (ECA) | 95 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | W/C/SNMG 43.. | Style | SCLCL08-3A |
| Coolant Supply Property (CSP) | Coolant Thru | Insert Style | 1.968″ |
Product Features
| Family Description | MULTI-WEDGE lock, toolholders with ISO 26622-1 tapered shanks for negative 80° rhombic, trigon and square inserts. | Country of Origin | Israel |
| Remarks | Tools with orientation holes in the flange groove can be supplied on request |
Shipping Info
Package Weight
0.919
