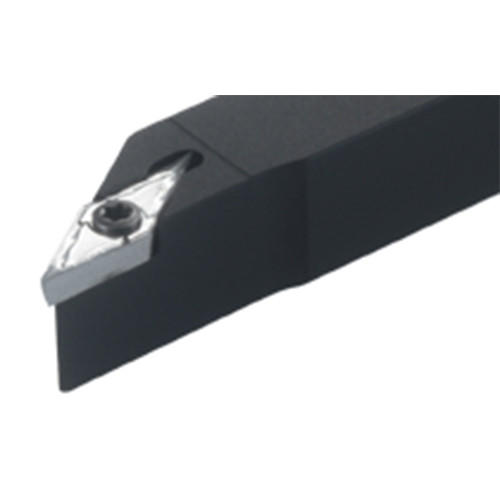

SVACR 1616K-13S

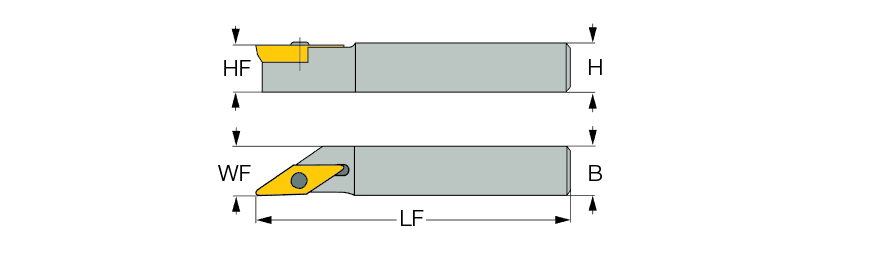

| Shank Height (H) | 0.63″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 0.63″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 4.921″ | Body Material | Steel |
| Functional Width (WF) | 0.63″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 0.313″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | VC..2.5.. | Style | SCLCL08-3A |
| Application | | Ext. 35° Diamond 91° Approach | | Insert Style | 4.921″ |
Product Features
| Family Description | 91° entering angle screw lock tools carrying 35° diamond inserts with 7° clearance angle | Country of Origin | Israel |
Shipping Info
Package Weight
0.546
