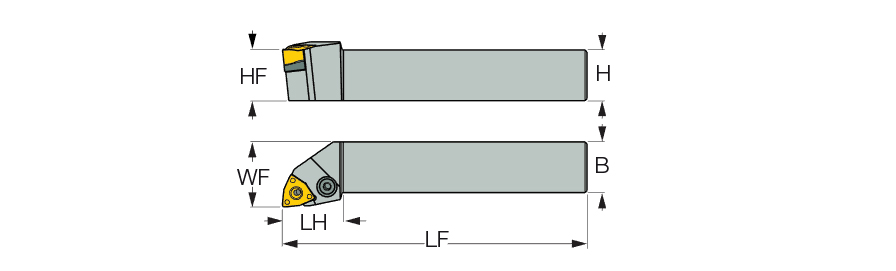

PWLNL 20-4X
| Shank Height (H) | 1-1/4″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 1-1/4″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 7″ | Body Material | Steel |
| Head Length (LH) | 1.18″ | Cutting Position | External |
| Functional Width (WF) | 1-1/4″ | End Chamfer Angle (ECA) | 95 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | WNMX 45. WNMG 43. | Style | SCLCL08-3A |
| Application | | Ext. 80° Trigon 95° Approach | | Insert Style | 7″ |
Product Features
| Family Description | Lever lock external turning tools carrying the HELITURN LD WNMX or WNMG trigon inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
2.668
