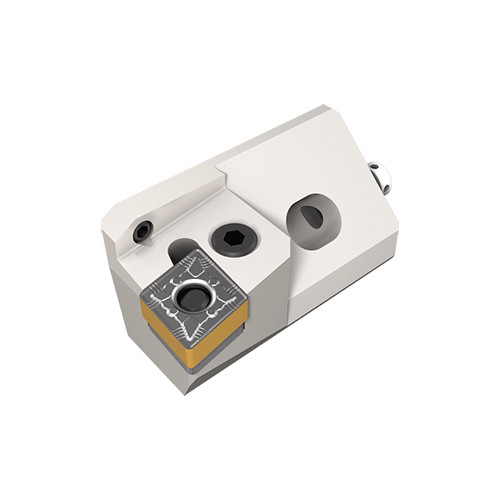

PCLNL 16CA-12

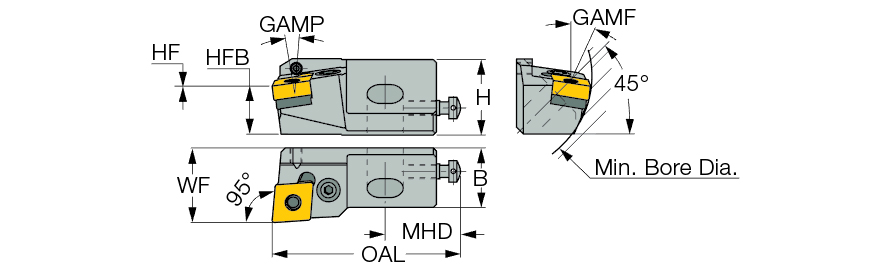

| Shank Height (H) | 0.984″ | Coolant Supply Property (CSP) | External |
| Shank Width (B) | 0.787″ | Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | |
| Overall Length (OAL) | 2.48″ | Rake Angle Axial (GAMP) | -8 Degrees |
| Functional Length (LF) | 2.48″ | Rake Angle Radial (GAMF) | -8 Degrees |
| Head Length (LH) | 1.496″ | Body Material | Steel |
| Functional Width (WF) | 0.984″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Adapter Turning Tools |
| Minimum Bore Diameter (DMIN) | 2.165″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | CNMG 1204 | Insert Style | 2.48″ |
Product Features
| Family Description | 95° entering angle exchangeable cartridges carrying the negative 80° diamond inserts | Country of Origin | Israel |
Shipping Info
Package Weight
0.397
