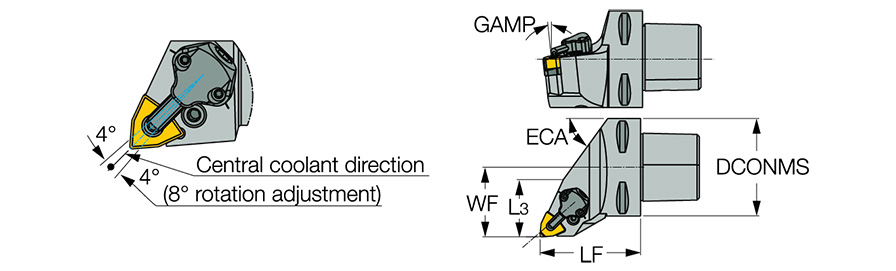

| Overall Length (OAL) | 4.055″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 2.559″ | Body Material | Steel |
| Functional Width (WF) | 1.772″ | Cutting Position | External |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | End Chamfer Angle (ECA) | 55 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | WNMG 43.. | Style | SCLCL08-3A |
| Application | | Ext. 80° Trigon 95° Approach | | Insert Style | 2.559″ |
| Rake Angle Axial (GAMP) | -6 Degrees |
Product Features

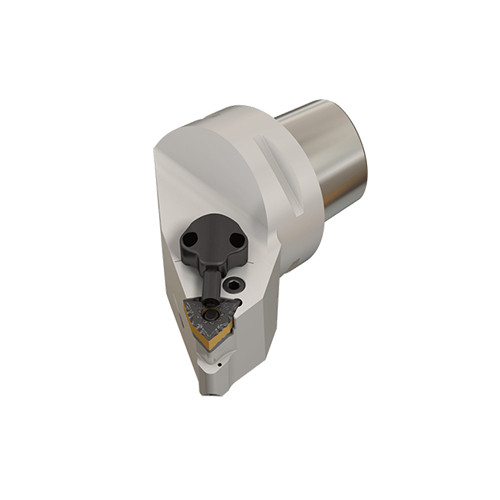

| Family Description | Lever lock tools with CAMFIX exchangeable shanks and channels for high-pressure coolant, carrying the trigon inserts. | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Weight
2.840
