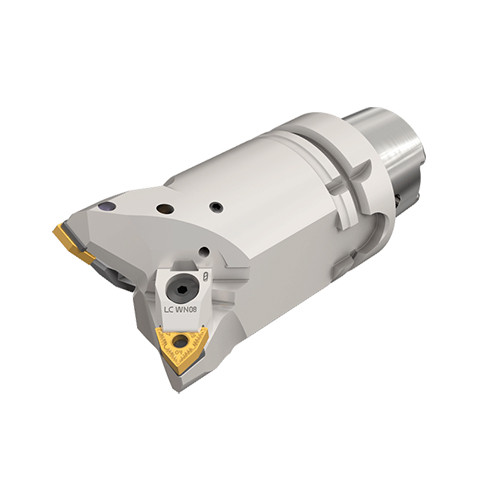

HSK A63WH-MULNR-J12MWX2
Turning Toolholder; 5.591″ OAL × 2.48″ Shank Dia. ; Right Hand ; Steel

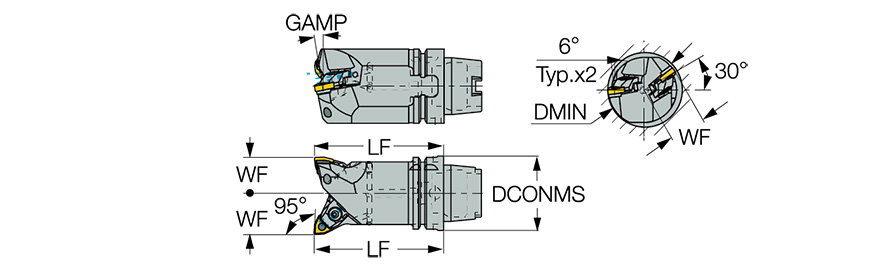

| Overall Length (OAL) | 5.591″ | Rake Angle Axial (GAMP) | -10 Degrees |
| Functional Length (LF) | 4.331″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 1.378″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Tapered Shank Turning Tools |
| Minimum Bore Diameter (DMIN) | 2.835″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | W/C/SNMG 43.. | Insert Style | 4.331″ |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | HSK |
| Application | | Ext. 80° Diamond 95° Approach | Ext. 80° Trigon 95° Approach | Ext. 90° Square 75° Approach | |
Product Features
| Family Description | MULTI-WEDGE lock, twin toolholders with HSK taper shanks for negative 80° rhombic, trigon and square inserts. Can be used on turn-mill machines. | Country of Origin | Israel |
| Remarks | Complies with ICTM standard (ISO 12164-3) Only LC WN08 is supplied with the toolholder. The other two wedges should be ordered separately. A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. |
Shipping Info
Package Weight
5.035
