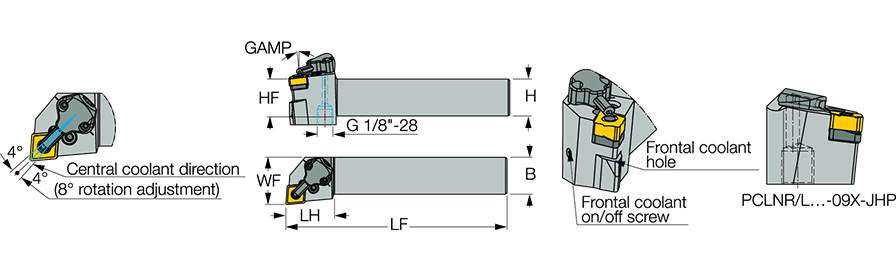

| Shank Height (H) | 32 mm | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 32 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 170 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 33 mm | Body Material | Steel |
| Functional Width (WF) | 40 mm | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | CNMX 1207, CNMG 1204 | Style | SCLCL08-3A |
Product Features

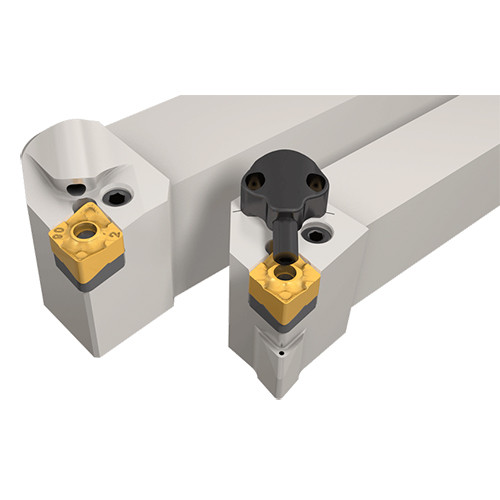

| Family Description | Lever lock tools with channels for high-pressure coolant carrying CNMX/CNMG 80° rhombic inserts. | Country of Origin | Israel |

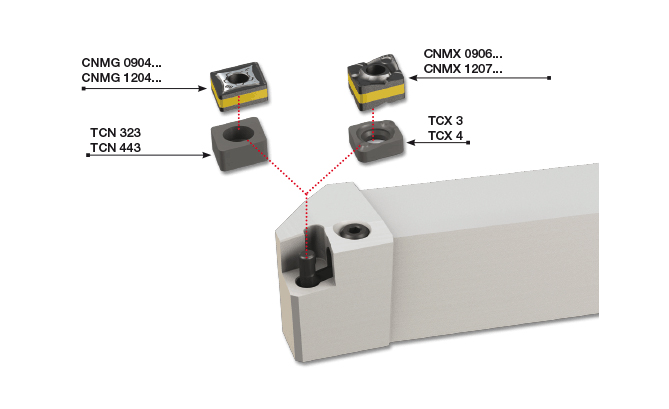

| Remarks | Supplied with TCX 3 seat for CNMX 0906.. inserts and TCN 323 seat for CNMG 0904.. inserts. TCX 4 seat for CNMX 1207.. inserts and TCN 443 seat for CNMG 1204.. inserts. For more details, click on More Info |
Shipping Info
Package Weight
3.179
