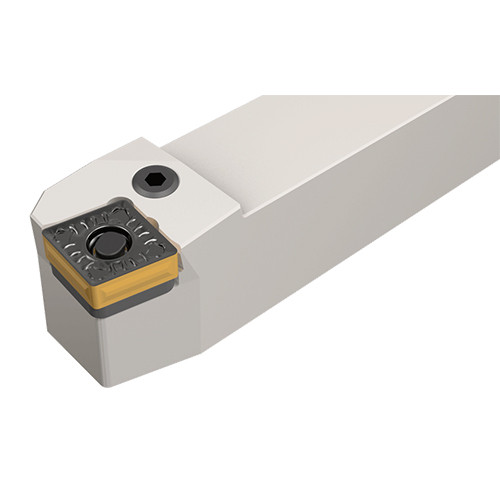

PCBOR 4040S-25-IQ

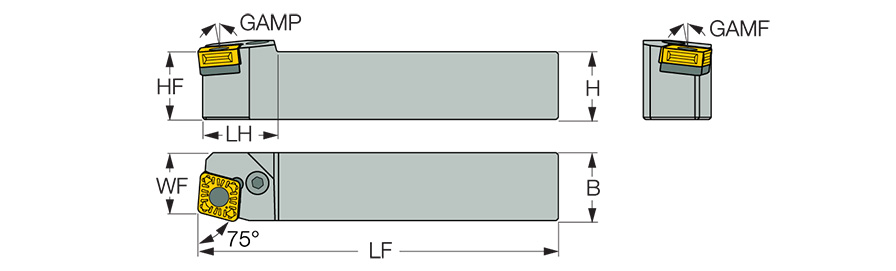

| Shank Height (H) | 40 mm | Application | | Ext. 100° Diamond 75° Approach | |
| Shank Width (B) | 40 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 250 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 50 mm | Body Material | Steel |
| Functional Width (WF) | 35 mm | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 25.4 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | COMG 2509 | Style | SCLCL08-3A |
Product Features
| Family Description | Lever-lock and dovetail pocket rigid clamping tools, carrying 10° unique double-sided negative flank 80° rhombic inserts. The tools use the 100° corner of the COMG inserts for rough turning. | Country of Origin | Israel |
Shipping Info
Package Weight
7.152
