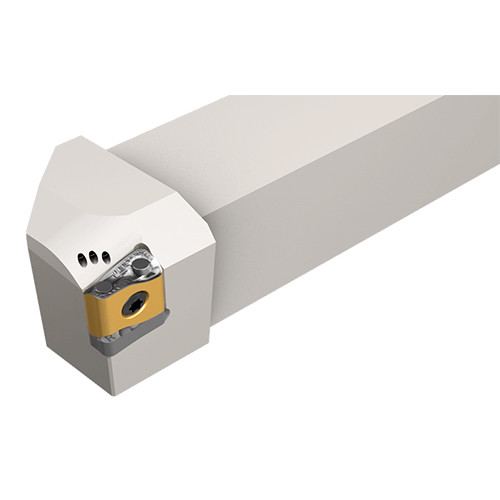

SLANL 3232P-15 TANG-JHP

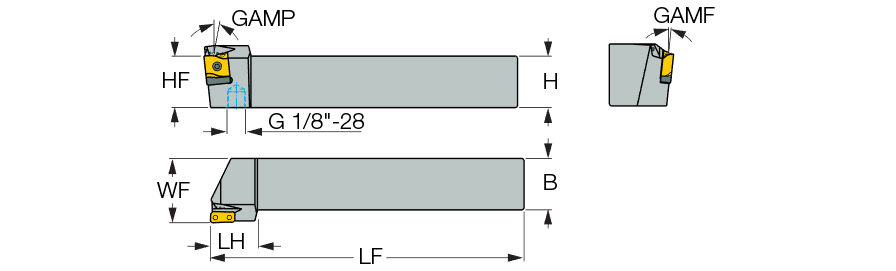

| Shank Height (H) | 32 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 32 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 170 mm | Body Material | Steel |
| Head Length (LH) | 30 mm | Cutting Position | External |
| Functional Width (WF) | 40 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | LNMX 1506 | Style | SCLCL08-3A |
| Application | | Ext. Tangential 93° Approach | | Insert Style | 170mm |
Product Features

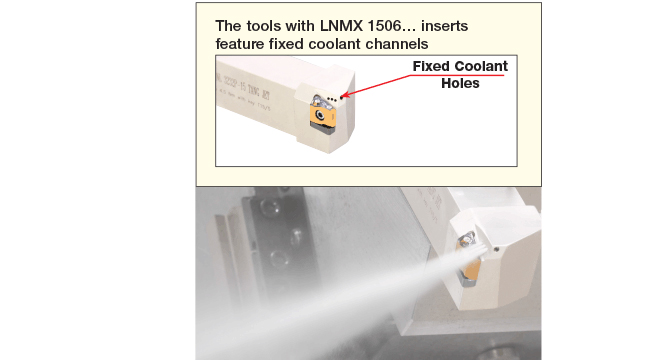

| Family Description | Screw-clamped tools with channels for high-pressure coolant, carrying LNMX tangentially clamped inserts. Recommended for heavy longitudinal and face turning. | Country of Origin | Israel |
| Remarks | ap max for facing 3.8 mm For more details, click on More Info |
Shipping Info
Package Weight
0.327
