PVACR 08-2S

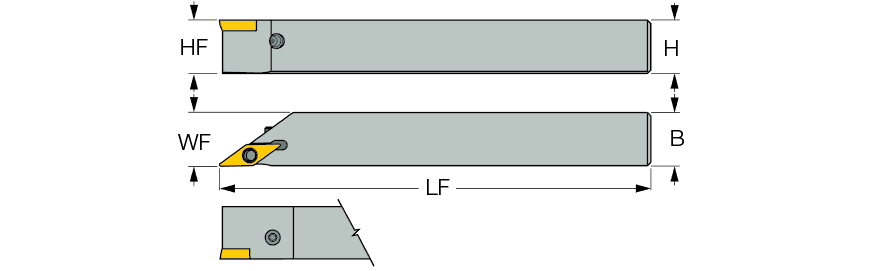

| Shank Height (H) | 1/2″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 1/2″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 5.905″ | Body Material | Steel |
| Functional Width (WF) | 0.506″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 1/4″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | VC.. 2 | Style | PVACR 08-2S |
| Application | | Ext. 35° Diamond 91° Approach | | Insert Style | 5.905″ |
Product Features
| Family Description | Side lever lock tools for 35° positive rhombic inserts intended for Swiss automatic machines. | Country of Origin | SWITZERLAND |

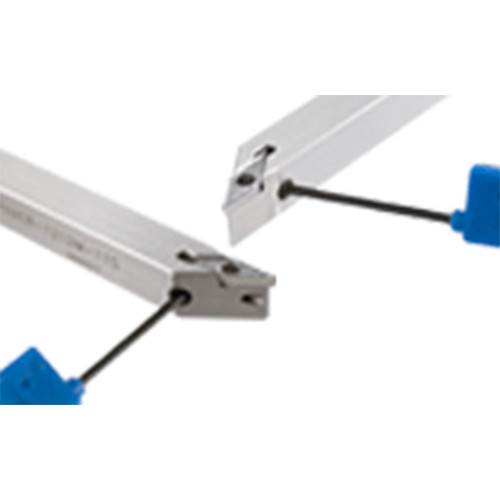

| Remarks | The clamping screw may by transferred to the opposite side if needed |
Shipping Info
Package Length
6.00000
Package Width
1.50000
Package Height
1.50000
Package Weight
0.436
