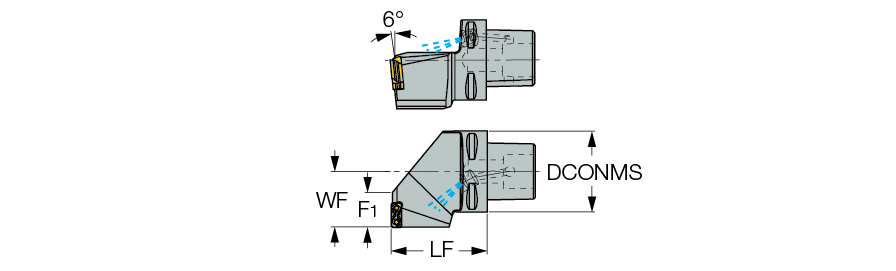

C4 SLFNR-27050-15 TANG
| Shank Height (H) | 1/2″ | Application | | Ext. Tangential 93°Face Approa | |
| Shank Width (B) | 1/2″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Overall Length (OAL) | 2.913″ | Body Material | Steel |
| Functional Length (LF) | 1.968″ | Cutting Position | External |
| Functional Width (WF) | 1.063″ | End Chamfer Angle (ECA) | 95 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | LNMX 15 | Style | SCLCL08-3A |
| Coolant Supply Property (CSP) | Coolant Thru | Insert Style | 1.969″ |
Product Features
| Family Description | Tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks for LNMX tangentially clamped inserts. Used for heavy face and longitudinal turning. | Country of Origin | Israel |
| Remarks | ap max for longitudinal turning: LNMX 11: .110″, LNMX 15: .150″ |
Shipping Info
Package Weight
2.977
