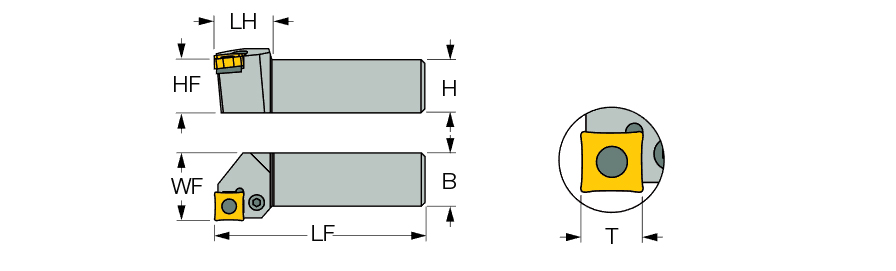

PQLNR 12-4
| Shank Height (H) | 1/2″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Shank Width (B) | 1/2″ | Body Material | Steel |
| Overall Length (OAL) | 4-1/2″ | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Length (LF) | 4″ | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 4-1/2″ | Measurement Type | Inch |
| Functional Width (WF) | 5/8″ | Style | SCLCL08-3A |
| Cutting Direction (HAND) | Left Hand | Insert Style | 4.5″ |
| Master Insert Identification (MIID) | QNMG 4 |
Product Features
| Family Description | Lever lock tools carrying the negative inserts with four 80° corners (AD - short tools for adapter holders). | Country of Origin | Israel |
| Remarks | For T, click on More Info. |
Shipping Info
Package Weight
0.807
