SCLCL 10-3

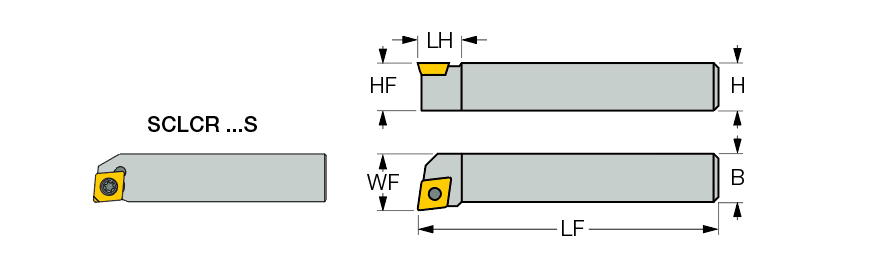

| Shank Height (H) | 5/8″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 5/8″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 4-1/2″ | Body Material | Steel |
| Head Length (LH) | 0.56″ | Cutting Position | External |
| Functional Width (WF) | 3/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL 10-3 |
| Master Insert Identification (MIID) | CC.. 3 | Insert Style | 4.5″ |
| Application | | Ext. 80° Diamond 95° Approach | |
Product Features
| Family Description | Screw lock tools carrying 80° diamond inserts with 7° clearance angle. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.573
