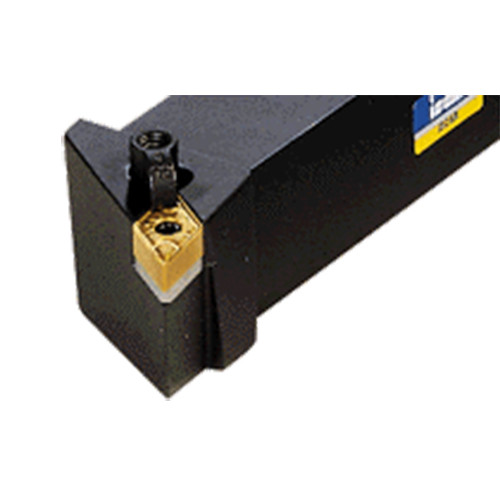

MDJNL 12-3

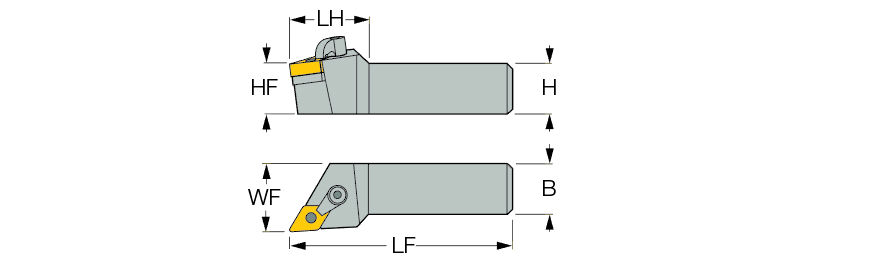

| Shank Height (H) | 3/4″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 3/4″ | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Length (LF) | 4-1/2″ | Body Material | Steel |
| Head Length (LH) | 1.19″ | Cutting Position | External |
| Functional Width (WF) | 1″ | Clamping System | CL5 |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | DN.. 3 | Style | MDJNL123 |
| Application | | Ext. 55° Diamond 93° Approach | | Insert Style | 4.5″ |
Product Features
| Family Description | Comlock 93° lead angle holders for negative 55° inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.771
