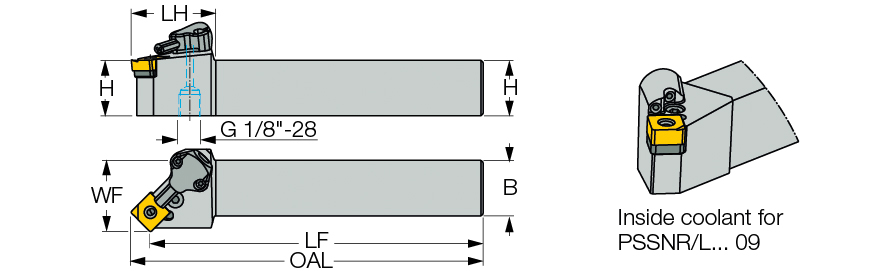

| Shank Height (H) | 20 mm | Application | | Ext. 90°Square 45°Face&Turn Ap | |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | -5.5 Degrees |
| Overall Length (OAL) | 131.4 mm | Rake Angle Radial (GAMF) | -5.5 Degrees |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 35 mm | Cutting Position | External |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | SNMG 09.. |
Product Features

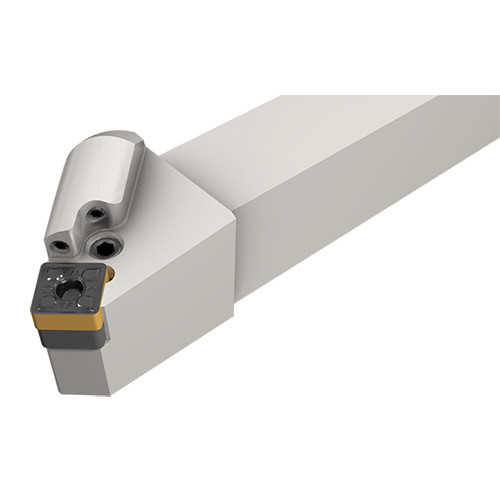

| Family Description | 45° lead angle lever lock tools with channels for high-pressure coolant carrying the negative square inserts for longitudinal and facing turning. | Country of Origin | Israel |
Shipping Info
Package Weight
0.988
