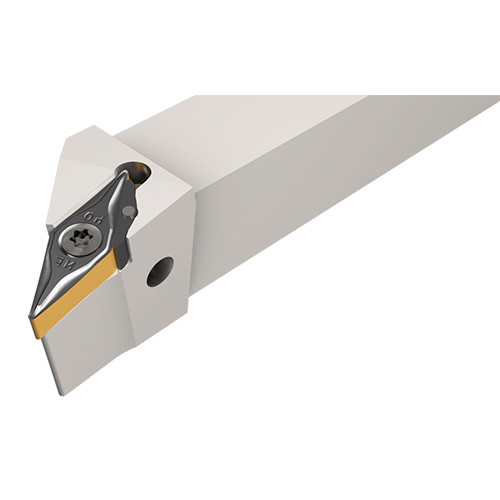

SVJNL 10-2.5F

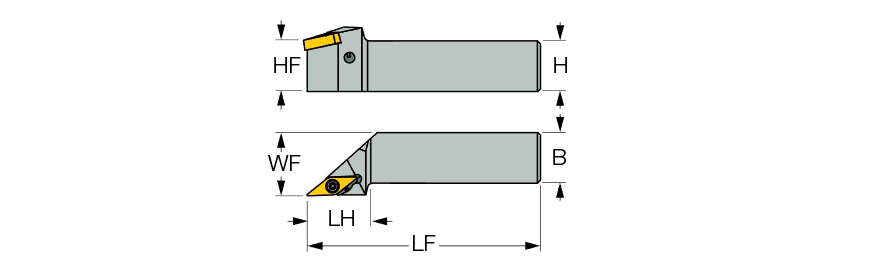

| Shank Height (H) | 5/8″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 5/8″ | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Length (LF) | 4″ | Body Material | Steel |
| Head Length (LH) | 1″ | Cutting Position | External |
| Functional Width (WF) | 0.8″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 0.281″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | VN.. 2.5 | Insert Style | 4″ |
| Application | | Ext. 35° Diamond 93° Approach | |
Product Features
| Family Description | Screw lock tools with a wedge for high rigidity, carrying 35° negative inserts for profiling applications. | Country of Origin | Israel |
| Remarks | Repeatability: For VNMG IS ±.0024, for VNGG IS ±.0008 |
Shipping Info
Package Weight
0.485
