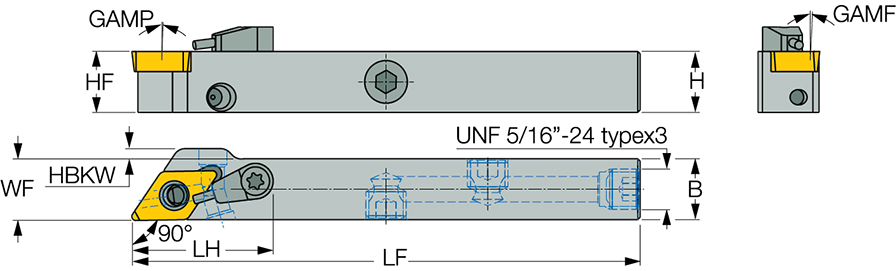

| Shank Height (H) | 20 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 20 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 28 mm | Cutting Position | External |
| Functional Width (WF) | 20.2 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | DC..11T3 | Insert Style | 125mm |
| Application | | Ext. 55° Diamond 91° Approach | |
Product Features

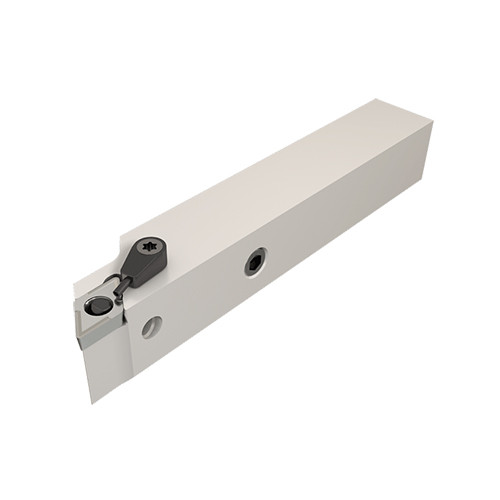

| Family Description | Lever lock tools with channels for high-pressure coolant carrying 55° positive rhombic inserts. The tools were designed for Swiss automatic machines. | Country of Origin | Switzerland |
Shipping Info
Package Weight
0.772
