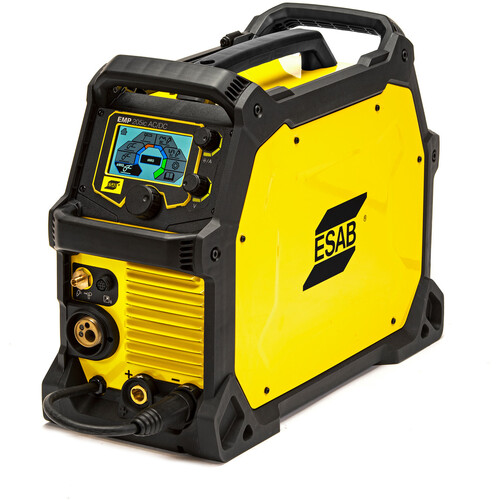

‎ESAB Rebel/ Rebel EMP 285ic Multi-Process Welder, 460 - 575 Volt, Three Phase with Cart

‹ ›

‎ESAB Rebel/ Rebel EMP 285ic Multi-Process Welder, 460 - 575 Volt, Three Phase with Cart

Item # ES020558102557

Brand: Esab

MFG#: 0558102557

Quantity Available

loading...

Type

Multi-Process

Duty Cycle

MIG: 285 A / 28 V at 50% Duty Cycle | 265 A / 27 V at 60% Duty Cycle | 200 A / 24 V at 100% Duty Cycle | STICK: 285 A / 31 V at 50% Duty Cycle | 255 A / 30 V at 60% Duty Cycle | 180 A / 27 V at 100% Duty Cycle | TIG: 285 A / 21 V at 50% Duty Cycle | 265 A / 21 V at 60% Duty Cycle | 220 A / 19 V at 100% Duty Cycle

Output Current

300 A

Frequency

50/60 Hz

Input Current

460/575V

Included

Power supply | Tweco Spray Master 350 Velocity MIG gun | Electrode holder | Atom Arc 7018 electrodes. Victor argon flow meter regulator | 12.5 ft. (3.8 m) hose | Return clamp with leads | Drive rolls and contact tips | .035 in. (0.9 mm) wire | Rebel single cylinder cart | Operator's manual

AMP Rating

‎5-300 A

Standards

CSA

Phase

3 Phase

Product Features

Remarks

Power to Perform - with 285A at 50% (3ph model) you'll have the confidence to run the full range of .045 in. (1.2 mm) wire, short arc and spray transfer, with increased deposition rates and higher productivity on smaller diameter wires such as .030 in. (0.8 mm) and .035 in. (0.9 mm)
sMIG Technology - innovative "smart-MIG" feature that dynamically monitors the arc characteristics ultimately adapting to your technique resulting in a smooth, stable arc
Set wire diameter and plate thickness and you are ready to weld
With ESAB's new 4 Roll Drive System, weld up to .052 in. (1.4 mm) solid wire and up to 1/16 in. (1.6 mm) cored wire
Electrodes up to 5/32 in. (4.0 mm) and TIG rods up to 3/16 in. (5.0 mm)
Unmatched Portability/Mobility - weighing in at 70 lbs. (32 kg) with multi-voltage, multi-phase capability and 4 handle roll cage
Detach the Rebel EMP 285ic from its cart and tackle any job around the shop or out at the job site
TFT Multilingual Display - packed full of features, Rebel EMP 285ic has 4 programmable memory locations for each process, multi-language selection, trim adjustment, inductance control, pre/post flow control and spot weld setting giving you the ability to fine tune your welds for the most optimal performance

Country of Origin

China

Shipping Info

Package Weight

0
