3613-V3 CONTOUR
| Horizontal/Vertical | Vertical | Blade Thickness | 0.032″ - 0.035″ |
| round_capacity__90deg | 13″ | Blade Width | 1/16″-1″ |
| rectangle_capacity__90deg | 13″ × 36″ | Drive System | Variable Frequency AC Drive |
| Horsepower | 3 hp | Miter-Cutting | No |
| Voltage | 208 V/460 V | Table Tilt | 10P-45N |
| Phase | 3 Phase | Series/List # | Contour |
| Blade Length | 199″ |
Product Features

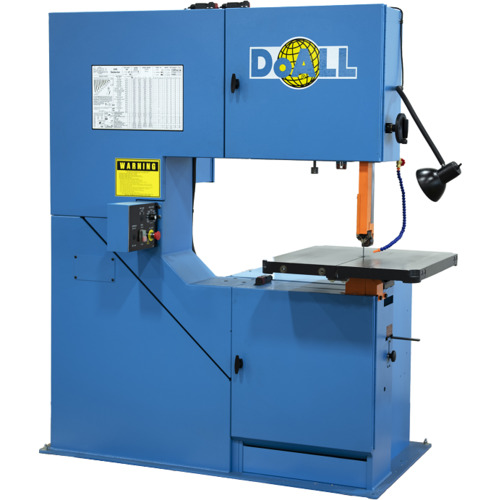

| Remarks | • Production Level: Low • Standard features: Work Light, Chip Blower and Post Elevating Hand Wheel • The DoALL 3613-V3 vertical contour band saw is perfect for operations which require flexibility and rugged dependability. • The ease of use for the machine operator also makes this vertical band saw an excellent choice. • The DoALL 3613-V3 can also be fitted with an optional blade welder, for sizing blades and doing contoured keyhole cuts on a variety of materials. The 3613-V3 offers a w 36″ by w 13″ (915mm × 330mm) cutting capacity with a tilting table that adjusts to meet a variety of needs. • Powered by a variable frequency 3 hp (2.23kW) AC inverter drive motor, you won't be lacking in performance when it's needed to do the job at hand. | Country of Origin | Taiwan |
