EC-A2 008-12/3C4H45T IC602

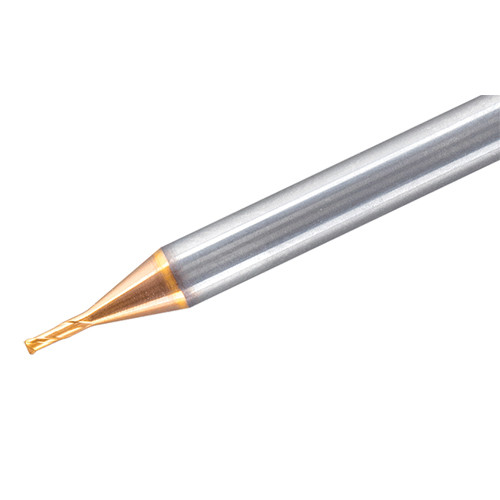

SQ End Mill; 0.8 mm Dia. × 1.2 mm LOC × 4 mm Shank Dia. × 45 mm OAL ; 2 FL ; 3 mm LBS

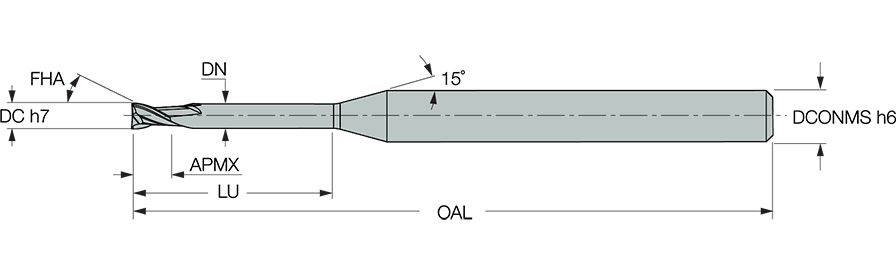

| Cutting Diameter (DC) | 0.8 mm | Neck Diameter (DN) | 0.75 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 1.2 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Overall Length (OAL) | 45 mm | Maximum Feed per Tooth (fz(max)) | 0.015 mm/tooth |
| Flute Count (NOF) | 2 | Minimum Feed per Tooth (fz(min)) | 0.007 mm/tooth |
| Flute Helix Angle (FHA) | 30 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Square | Measurement Type | Metric |
| Usable Length (LU) | 3 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Shouldering | Slotting | | Cutting Diameter Tolerance | e8 |
| Grade | IC602 | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 2 flute endmill for high-speed machining hardened steel of up to 65 HRc | Country of Origin | S.Korea |
Shipping Info
Package Weight
15
