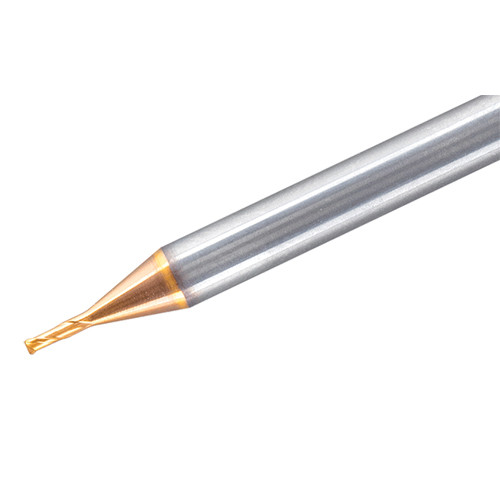

EC-A2 015-25/12C4R020H50T IC602
SQ End Mill; 1.5 mm Dia. × 2.5 mm LOC × 4 mm Shank Dia. × 50 mm OAL ; 0.2 mm RE ; 2 FL ; 12 mm LBS

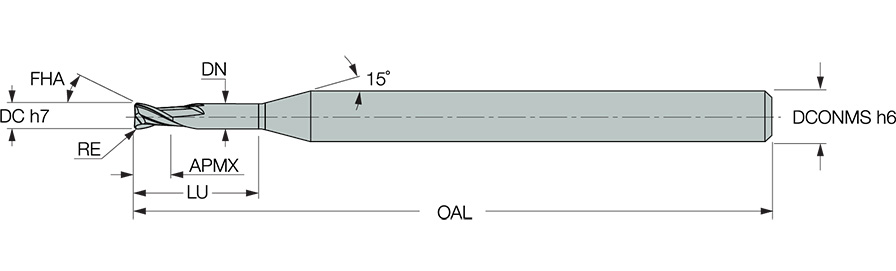

| Cutting Diameter (DC) | 1.5 mm | Neck Diameter (DN) | 1.43 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 2.5 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Overall Length (OAL) | 50 mm | Maximum Feed per Tooth (fz(max)) | 0.025 mm/tooth |
| Flute Count (NOF) | 2 | Minimum Feed per Tooth (fz(min)) | 0.013 mm/tooth |
| Flute Helix Angle (FHA) | 30 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 12 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Shouldering | Slotting | | Cutting Diameter Tolerance | e8 |
| Corner Radius (RE) | 0.2 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Grade | IC602 |
Product Features
| Family Description | 2 flute endmill with a corner radius for high speed machining hardened steel of up to 65 HRc | Country of Origin | S.Korea |
