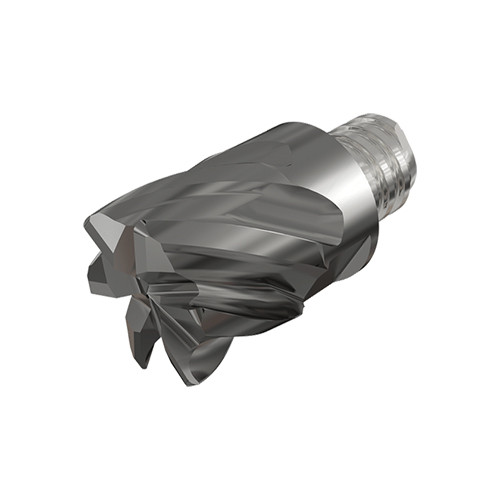

MM ECK160H12R40-6T10CF IC908
End Mill Head; 16 mm Dia. × 12 mm LOC × 15.3 mm Shank Dia. ; 6 FL ; T10 ; Carbide ; TiAlN ; IC908
| Application | | Helical Interpolation | Rampdown | Shouldering | | Coating | TiAlN |

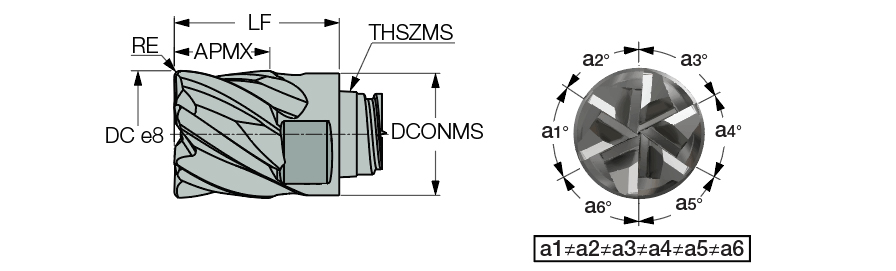

| Cutting Diameter (DC) | 16 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Corner Radius (RE) | 4 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 12 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 15.3 mm | Body Material | Carbide |
| Functional Length (LF) | 20.5 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Flute Helix Angle (FHA) | 37 Degrees | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Grade | IC908 |
Product Features
| Family Description | 5,6 Flute Solid Carbide heads with 35°/38° helix featuring corner radii from 0.4 to 5 mm. The heads are designed mostly for machining titanium alloys, including hard-to-cut beta- and near beta- alloys, especially by trochoidal milling | Country of Origin | Israel |
| Remarks | For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.134
