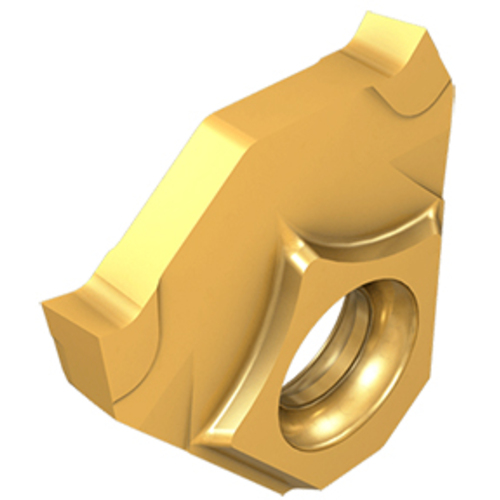

TGV R1.00P-0.05-8D IC1010
Parting Off Insert; 0.039″ CW × 0.002″ Corner Radius ; Right Hand ; Carbide ; TiAlN, TiN ; IC1010

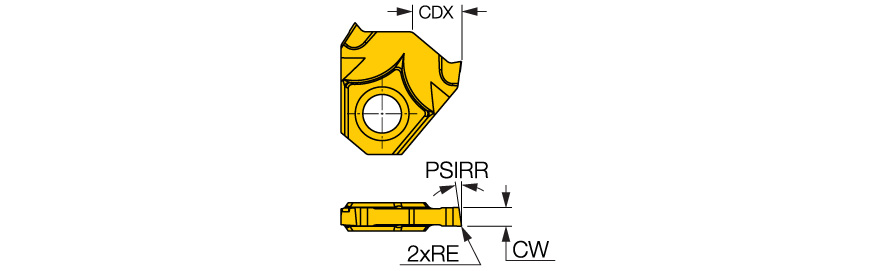

| Cutting Width (CW) | 0.039″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.002″ | Max. Grooving Feed (fg(max)) | 0.0024 ″/rev |
| Cutting Depth Maximum (CDX) | 0.157″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN, TiN | Measurement Type | Inch |
| Grade | IC1010 | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Angle Major Right Hand (PSIRR) | 8 Degrees |
| Application | | Parting | | Insert Width (W1) | 0.118″ |
Product Features
| Family Description | Double sided tangential insert with lead angle cutting edge to minimize burr size, intended for parting small parts. | Country of Origin | Israel |
| Remarks | Cutting edge with high positive rake, suitable for parting small and miniature parts For parting and grooving range, click on More Info |
