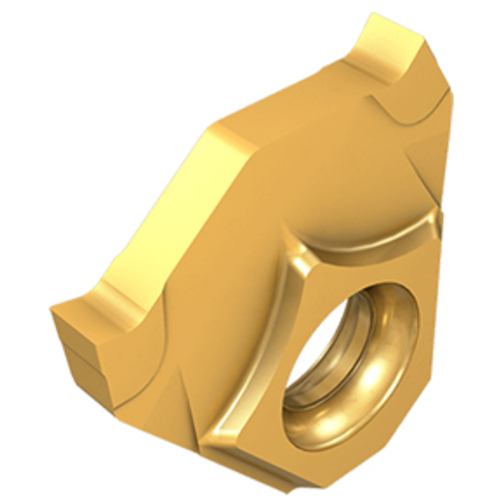

TGV N033P-000 IC1010
Parting Off Insert; 0.013″ CW × 0″ Corner Radius ; Neutral ; Carbide ; TiAlN, TiN ; IC1010

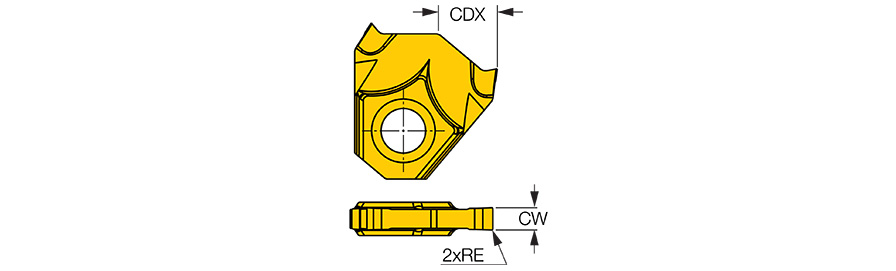

| Cutting Width (CW) | 0.013″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0″ | Max. Grooving Feed (fg(max)) | 0.0016 ″/rev |
| Cutting Depth Maximum (CDX) | 0.079″ | Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN, TiN | Measurement Type | Inch |
| Grade | IC1010 | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Insert Width (W1) | 0.118″ |
Product Features
| Family Description | Double sided tangential insert for SWISS type machines, intended for grooving, parting and recessing small parts. | Country of Origin | Israel |
| Remarks | Cutting edge with high positive rake, suitable for parting small and miniature parts For parting and grooving range, click on More Info |
Shipping Info
Package Weight
4.6
