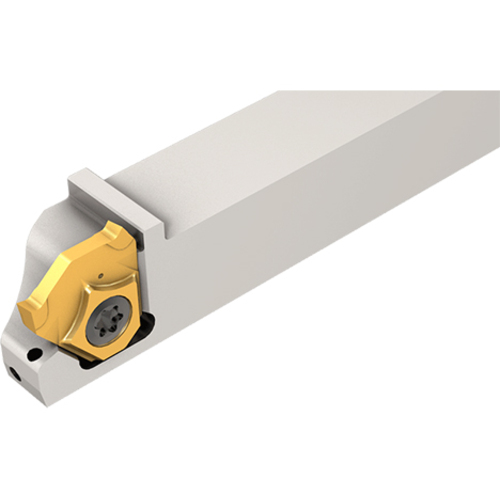

TGVL 12.7-JHP
Parting Off Holder; 4.921″ OAL × 0.013″ CW Min. × 0.079″ CW Max. ; Steel
| Shank Height (H) | 1/2″ | Body Material | Steel |
| Shank Width (B) | 1/2″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.013″ | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 0.079″ | Measurement Type | Inch |
| Overall Length (OAL) | 4.921″ | Coolant Entry Thread Size (CNT) | UNF 5/16-24 |
| Head Length (LH) | 0.63″ | Tool Assembly Length (LTA) | 1.024″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
Product Features
| Family Description | Grooving, parting and recessing tools carrying TGV inserts with channels for high-pressure coolant. | Country of Origin | Israel |
| Remarks | For more details click on More Info |
Shipping Info
Package Weight
179
