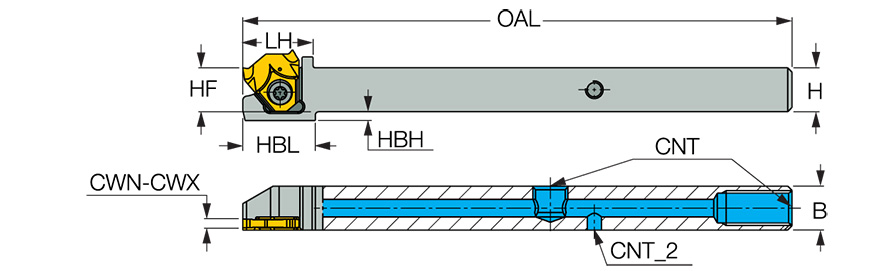

TGVL 1010-JHP
Parting Off Holder; 125 mm OAL × 0.33 mm CW Min. × 2 mm CW Max. ; Steel
| Shank Height (H) | 10 mm | Body Material | Steel |
| Shank Width (B) | 10 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.33 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 2 mm | Measurement Type | Metric |
| Overall Length (OAL) | 125 mm | Coolant Entry Thread Size (CNT) | UNF 5/16-24 |
| Head Length (LH) | 16 mm | Head Bottom Offset Height (HBH) | 2 mm |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Tool Assembly Length (LTA) | 26 mm |
Product Features
| Family Description | Grooving, parting and recessing tools carrying TGV inserts with channels for high-pressure coolant. | Country of Origin | Israel |
| Remarks | For more details click on More Info |
Shipping Info
Package Weight
130
