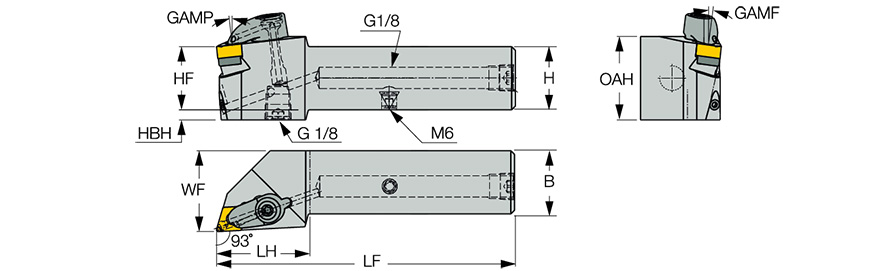

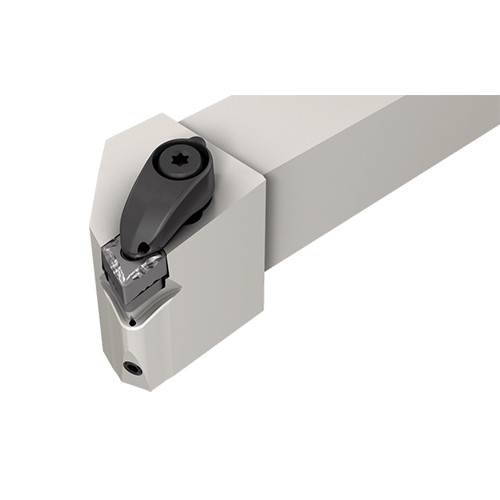

DXJNR 12-4-JHP-MC
Turning Toolholder; 4.212″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 1.457″ LH ; Right Hand ; Steel
| Shank Height (H) | 3/4″ | Application | | Ext. 70° Diamond 93° Approach | |
| Shank Width (B) | 3/4″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Overall Length (OAL) | 4.212″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 1.457″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | XNMG 4 |
Product Features
| Family Description | Rigid Clamp Tools with Channels for High-Pressure Coolant Carrying 70° Rhombic Inserts | Country of Origin | Israel |
Shipping Info
Package Weight
413
