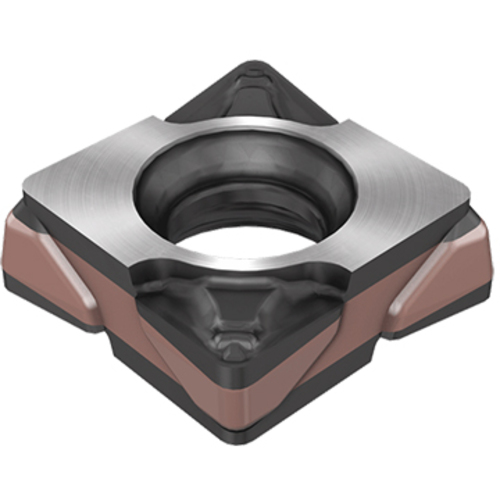

CXMU 060208-F3M IC1008
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN+TiN |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Grade | IC1008 |
| Insert Style | CXMU | Tool Type | Turn Negative Inserts |

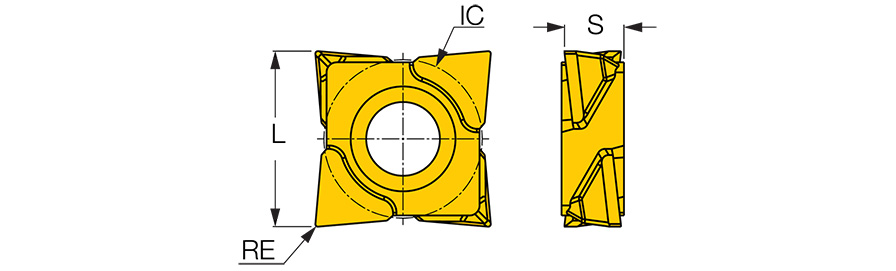

| Corner Radius (RE) | 0.0315″ | Min D.O.C. | 0.031″ |
| Insert Size | 060 | Depth of Cut Maximum (APMX) | 0.079″ |
| Cutting Edge Length (L) | 0.271″ | Min. Turning Feed (ft(min)) | 0.00275 ″/rev |
| Insert Thickness (S) | 0.094″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features
| Family Description | 80° Double-sided and double-positive inserts with a positive rake for finishing stainless steel and H.T.A. | Country of Origin | Israel |
Shipping Info
Package Weight
2.2
