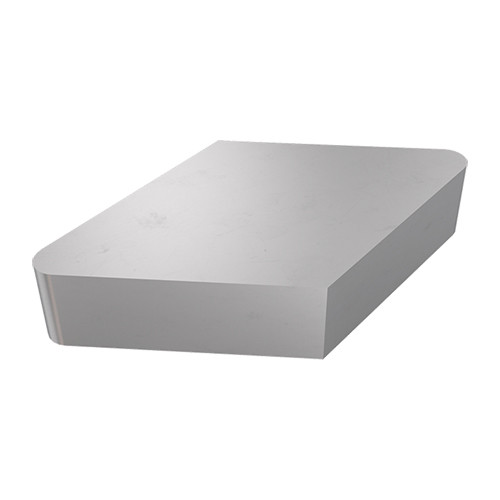

DNG 433 T0420 IW10
| Applicable Material | | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 0.02″ |
| Insert Style | DNG | Depth of Cut Maximum (APMX) | 0.157″ |
| Corner Radius (RE) | 0.0472″ | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Size | 433 | Max. Turning Feed (ft(max)) | 0.01968 ″/rev |
| Cutting Edge Length (L) | 0.61″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | Whiskers | Body Material | Carbide |
| Grade | IW10 |
Product Features
| Family Description | Negative 55° rhombic double-sided ceramic inserts for machining cast iron and hardened steel | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
8.4
