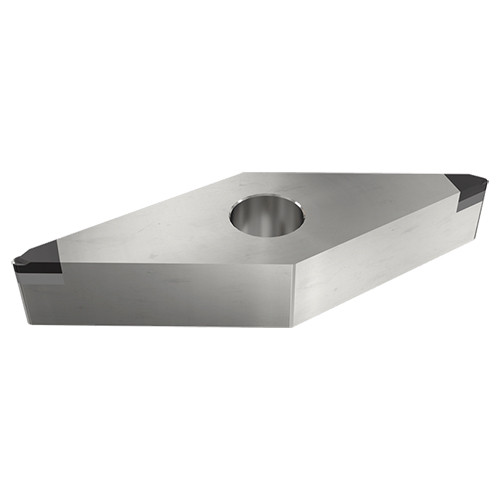

VNGA 333S-2MT MM BI15HC
| Applicable Material | | Hard Materials | | Grade | BI15HC |
| Application | | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | Int. 35° Diamond 95° Approach | | Fixing Hole Diameter (D1) | 0.173″ |
| Insert Style | VNGA | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.0472″ | Min D.O.C. | 0.002″ |
| Insert Size | 333 | Depth of Cut Maximum (APMX) | 0.016″ |
| Cutting Edge Length (L) | 0.654″ | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Body Material | Carbide |
Product Features
| Family Description | Negative 35° rhombic inserts with 2 MM chipbreaking CBN mini tips for hardened steel and cast iron | Country of Origin | Germany |
Shipping Info
Package Weight
10.4
