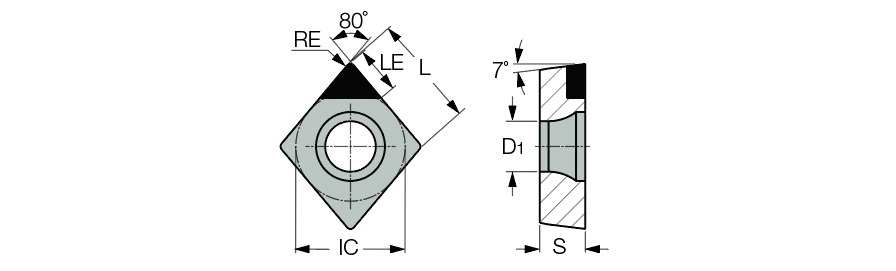

CCGT 32.52F MD ID8
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 0.173″ |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | | Tool Type | Turn Positive Inserts |
| Insert Style | CCGT | Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 32. | Min. Turning Feed (ft(min)) | 0.00118 ″/rev |
| Cutting Edge Length (L) | 0.382″ | Max. Turning Feed (ft(max)) | 0.02362 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | PCD | Body Material | Carbide |
| Grade | ID8 |
Product Features
| Family Description | Positive 80° rhombic inserts with 2 Types MD/RD chipbreaking PCD tips for aluminum and other non-ferrous materials finishing & medium applications. | Country of Origin | Germany |
| Remarks | For dimensions and tolerances, Click on More Info |
