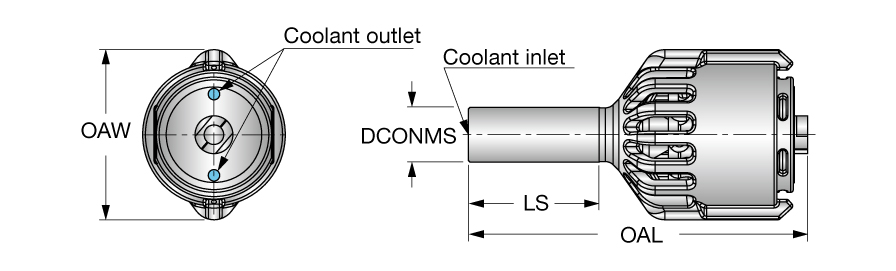

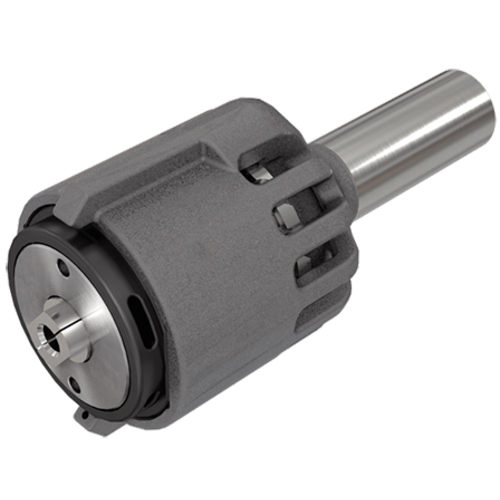

TJS M00-1/8
Collet Chuck ; ST10 Shank Size ; TJS collet Connection Size ; 0.394″ Shank Dia.
| Shank Size (SS) | ST10 | Application | | Straight shape | |
| Connection Size (CSI) | TJS collet | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Connection Diameter Workpiece Side (DCONWS) | 1/8″ |
| Shank Length (LS) | 0.937″ | Body Material | Steel |
| Functional Length (LF) | 1.402″ |
Product Features
| Family Description | High-pressure coolant driven HSM spindle with a straight shank, for small diameter cutting tools. | Country of Origin | ISRAEL |
| Remarks | Coolant pressure: 1.5 4 MPa Flow rate: 10 20 l/min Tool diameter (DC) of Drilling: 0.1 2 mm Tool diameter (DC) of Milling: 0.3 3 mm Max. tool shank diameter: 3.175 mm Number of revolutions: 18,000 40,000 min 1 (These are approximate number of revolutions depending on coolant pressure, flow rate, and type.) |
Shipping Info
Package Weight
0.000
