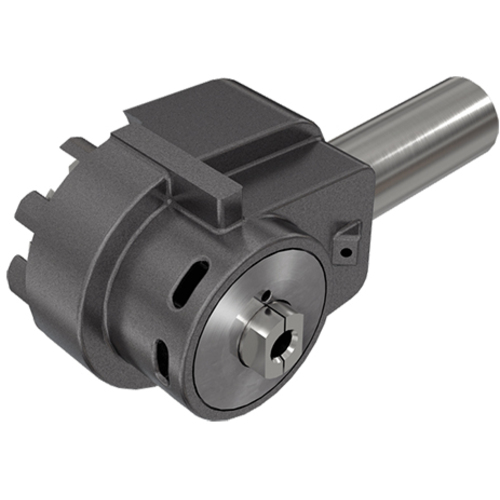

TJS M90-3.0

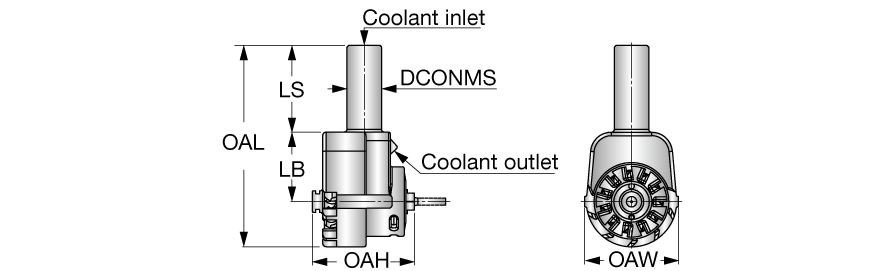

Collet Chuck ; ST10 Shank Size ; TJS collet Connection Size ; 20 mm Body Length ; 10 mm Shank Dia.

| Shank Size (SS) | ST10 | Functional Length (LF) | 20 mm |
| Connection Size (CSI) | TJS collet | Application | | Straight shape | |
| Body Length (LB) | 20 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Connection Diameter Workpiece Side (DCONWS) | 3 mm |
| Shank Length (LS) | 25 mm | Body Material | Steel |

Product Features
| Family Description | High-pressure coolant driven HSM spindle with a straight shank, for small diameter cutting tools, angular head type. | Country of Origin | ISRAEL |
| Remarks | Coolant pressure: 2 4 MPa Flow rate: 10 20 l/min Tool diameter (DC) of Drilling: 0.5 2 mm Tool diameter (DC) of Milling: 1.5 3.5 mm Max. tool shank diameter: 3.175 mm Number of revolutions: 35,000 53,000 min 1 (These are approximate number of revolutions depending on coolant pressure, flow rate, and type.) |
