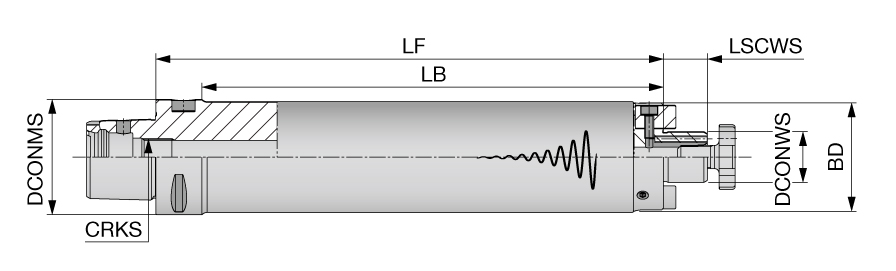

AV C6 SEM 3/4 2.4X12.20
Shell Mill Holder; 2.48″ Shank Dia. ; 3/4″ Hole Dia. ; 2.4″ Body Dia. ; 12.2″ OAL ; 11.33″ Body Length ; C6 Shank Size
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Connection Retention Knob Thread Size (CRKS) | M20 |
| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Application | | Face contact interface | |
| Shank Size (SS) | C6 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Length (LB) | 11.33″ | Measurement Type | Inch |
| Body Diameter (BD) | 2.4″ | Body Material | Steel |
| Overall Length (OAL) | 12.2″ |
Product Features
| Family Description | Anti-vibration shell mill holder with coolant holes and TungCap (ISO 26623-1) shank | Country of Origin | GERMANY |
| Remarks | These holders have slots for data chip. |
Shipping Info
Package Weight
0.000
