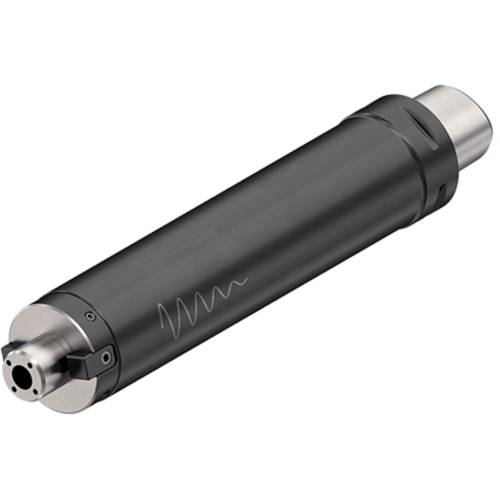

AV C6 SEM27 61X250
Shell Mill Holder; 63 mm Shank Dia. ; 27 mm Hole Dia. ; 61 mm Body Dia. ; 250 mm OAL ; 228 mm Body Length ; C6 Shank Size

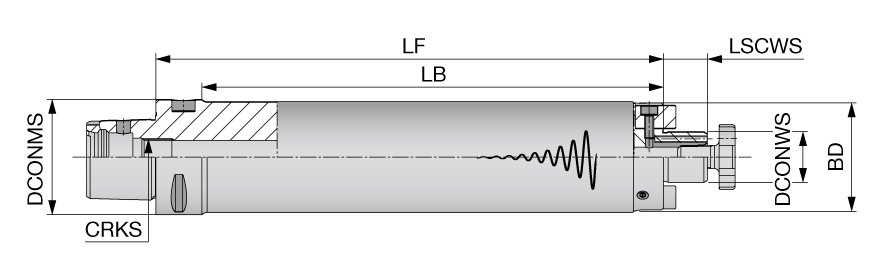

| Connection Diameter Machine Side (DCONMS) | 63 mm | Connection Retention Knob Thread Size (CRKS) | M20 |
| Connection Diameter Workpiece Side (DCONWS) | 27 mm | Application | | Face contact interface | |
| Shank Size (SS) | C6 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Length (LB) | 228 mm | Measurement Type | Metric |
| Body Diameter (BD) | 61 mm | Body Material | Steel |
| Overall Length (OAL) | 250 mm |
Product Features
| Family Description | Anti-vibration shell mill holder with coolant holes and TungCap (ISO 26623-1) shank | Country of Origin | GERMANY |
| Remarks | These holders have slots for data chip. |
Shipping Info
Package Weight
0.000
