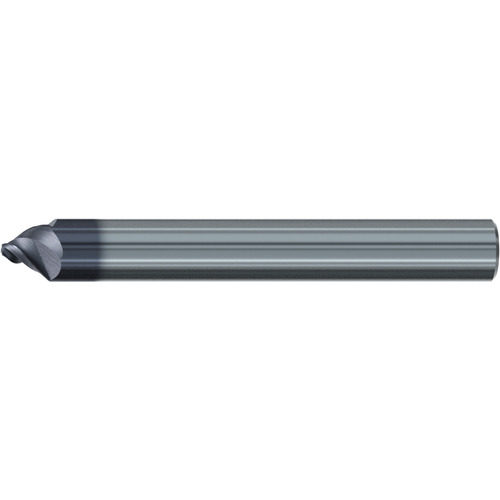

1/2 Carbide Spiral Chamfer Mill 90° 3 Flute TIALN
Chamfer Mill; 1/2″ Dia. × 0.21″ LU × 3″ OAL × 1/2″ Shank Dia. ; 3 FL ; 90 Degrees ; Carbide ; TiAlN ; Series 1708A
| Applicable Material | | Universal Materials | | Coating | TiAlN |
| Application | | Finishing | | Shank Type | Round |
| Cutting Diameter (DC) | 1/2″ | End Shape | Pointed |
| Decimal Equivalent | 0.5″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 0.21″ | Tool Type | Chamfer Mill |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Overall Length (OAL) | 3″ | Series/List # | 1708A |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Point Angle (SIG) | 90 Degrees | Connection Code Machine Side (CCMS) | HA |
| Cutting Edge Material | Carbide |
Product Features
| Remarks | • Carbide chamfer mill with specialized spiral cutting edge for smoother cutting action. • Spiral point design improves surface finish. Reduced torque requirements. • TIALN coated for heat and wear resistance. | Country of Origin | USA |
Shipping Info
Package Weight
0.31
