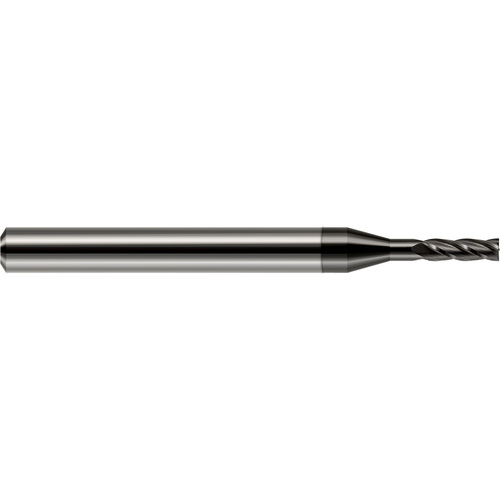

4 Flute - 0.0310″ (1/32) Cutter DIA × 0.0930″ (3/32) LOC × 0.1560″ (5/32) Reach - Amorphous Diamond Coated Miniature End Mills - Square - Long Reach, Standard Flute
Square End Mill; 1/32″ Dia. × 3/32″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; DLC
| Cutting Diameter (DC) | 1/32″ | Neck Diameter (DN) | 0.03″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Neck Length (LN) | 0.063″ |
| Depth of Cut Maximum (APMX) | 3/32″ | Length Group | 5D |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | DLC | Decimal Equivalent | 0.031″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
| Usable Length (LU) | 5/32″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.020
