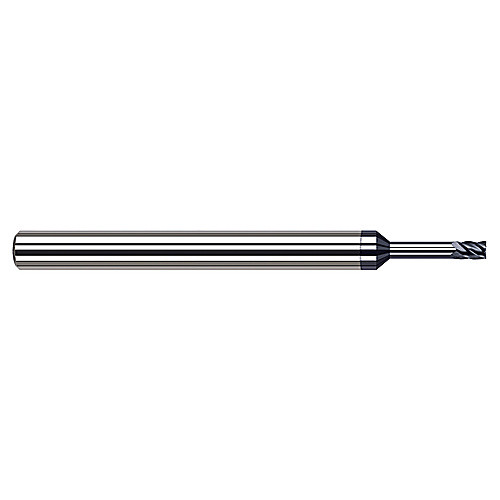

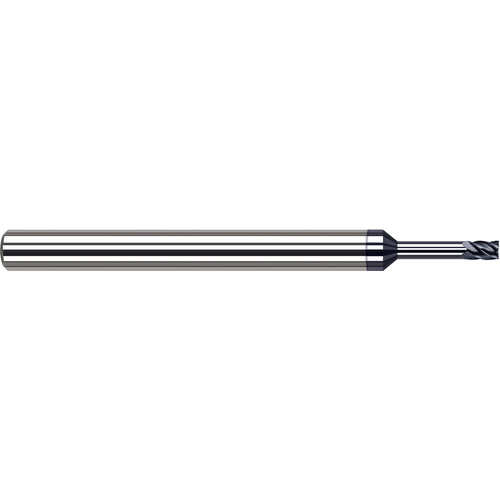

5 Flute - 0.0780″ (5/64) Cutter DIA × 0.1170″ LOC × 0.4060″ (13/32) Reach - AlTiN Nano Coated End Mills for Hardened Steels - Square - For Steels Up to 55 Rc - Long Reach, Stub Flute
SQ End Mill; 5/64″ Dia. × 0.117″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 5 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 5/64″ | Applicable Material | | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Neck Diameter (DN) | 0.077″ |
| Depth of Cut Maximum (APMX) | 0.117″ | Length Group | 5D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Decimal Equivalent | 0.078″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees | Shank Size (SS) | 1/4″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
| Usable Length (LU) | 13/32″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
