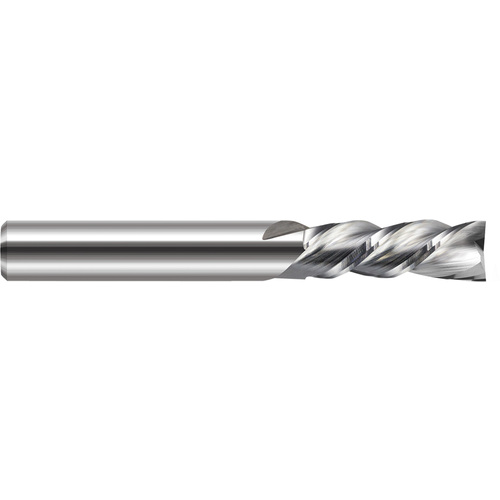

2 Flute - 0.3750″ (3/8) Cutter DIA × 1.1250″ (1-1/8) LOC End Mills for Plastics - Square Downcut - High Helix
SQ End Mill; 3/8″ Dia. × 1-1/8″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 2 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 3/8″ | Usable Length (LU) | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Applicable Material | | Other Non-Metallic Materials | |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Length Group | 3D |
| Overall Length (OAL) | 3″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees | Shank Size (SS) | 3/8″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.15
