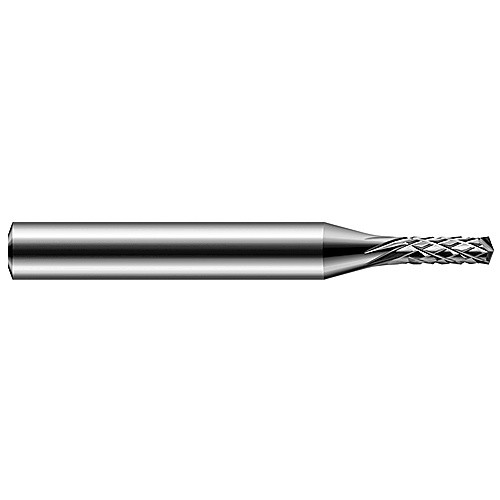

0.5000″ (1/2) Cutter DIA × 1.5000″ (1-1/2) LOC × 140 Degree included - 12 RH Teeth, 14 LH Teeth End Mills for Composites - Diamond Cut - Drill Mill Style
SQ End Mill; 1/2″ Dia. × 1-1/2″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 12 FL ; 1-1/2″ LBS ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Other Non-Metallic Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Length Group | 3D |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Flute Type | Spiral |
| Overall Length (OAL) | 3″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 12 | Shank Size (SS) | 1/2″ |
| Flute Helix Angle (FHA) | 25 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| Usable Length (LU) | 1-1/2″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.3
