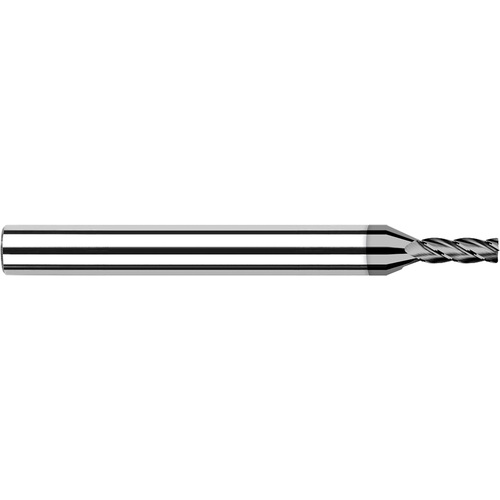

4 Flute - 0.2500″ (1/4) Cutter DIA × 0.0100″ Radius × 0.7500″ (3/4) LOC - CVD Diamond Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Corner Radius
SQ End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 0.01″ RE ; 4 FL ; Carbide ; CVDDIA
| Cutting Diameter (DC) | 1/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 0.01″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Length Group | 3D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | CVDDIA | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Size (SS) | 1/4″ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
| End Shape | Corner Radius | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 3/4″ | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
